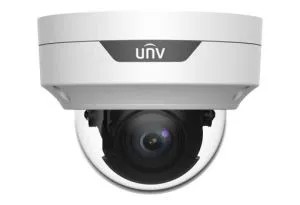

[O] Caméra Dôme IP-HD Blanche Capteur 1/3" CMOS 4 MP 0,005Lux Résolution Max 2592x1520px Objectif 2.8~12mm Infrarouge Max 30 mètres Ultra 265/H264/MJPEG WDR 120dB 3D DNR IP67 & IK10 Alarme Ultra POE ou DC12V Micro SD Analytique Garantie 24 mois

Camera Sensor 1/3", 4.0 megapixel, progressive scan, CMOS Lens 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 2.8 63.0 25.2 12.6 6.3 12 270.0 108.0 54.0 27.0 Angle of View (H) 98.26°~ 31.35° Angle of View (V) 54.76°~ 18.55° Angle of View (O) 127.74°~36.99° Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 70° Rotate: 0° ~ 360° Shutter Auto/Manual, 1 ~ 1/100000s Minimum Illumination Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR Day/Night IR-cut filter with auto switch (ICR) Digital noise reduction 2D/3D DNR S/N >56dB IR Range Up to 30m (98ft) IR range Wavelength 850nm IR On/Off Control Auto/Manual Defog Digital Defog WDR 120dB Video Video Compression Ultra 265, H.265, H.264, MJPEG H.264 code profile Baseline Profile, Main Profile Frame Rate Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps;1080P(1920*1080),Max30fps Sub Stream: 4CIF (704*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps Video Bit Rate 128 Kbps~16 Mbps OSD Up to 4 OSDs Privacy Mask Up to 4 areas ROI Up to 2 areas Motion Detection Up to 4 areas Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Digital noise reduction 2D/3D DNR Smart IR Support Flip Normal/Vertical/Horizontal/180° Dewarping NA HLC Supported BLC Supported Audio Audio Compression G.711 Suppression Supported Sampling Rate 8KHZ Storage Edge Storage Micro SD, up to 256GB Network Storage ANR Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL Compatible Integration ONVIF (Profile S, Profile G, Profile T), API Client EZStation EZView EZLive Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ Interface Audio I/O Input: impedance 35kO; amplitude 2V [p-p] Output: impedance 600O; amplitude 2V [p-p] Alarm I/O 1/1 Network 10M/100M Base-TX Ethernet Certifications Certifications CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 General Power DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 8.7W Dimensions (Ø x H) F128.1mmx99.9mm (Ø5.04” x 3.93”) Net Weight 0.57kg (1.26lb) Material Metal + Plastic Working Environment -35°C ~ 60°C (-31°F ~ 140°F), Humidity: =95% RH (non-condensing) Strorage Environment -35°C ~ 60°C (-31°F ~ 140°F), Humidity: =95% RH (non-condensing) Surge Protection 6KV Ingress Protection IP66 Vandal Resistant IK10 Reset Button Supported
