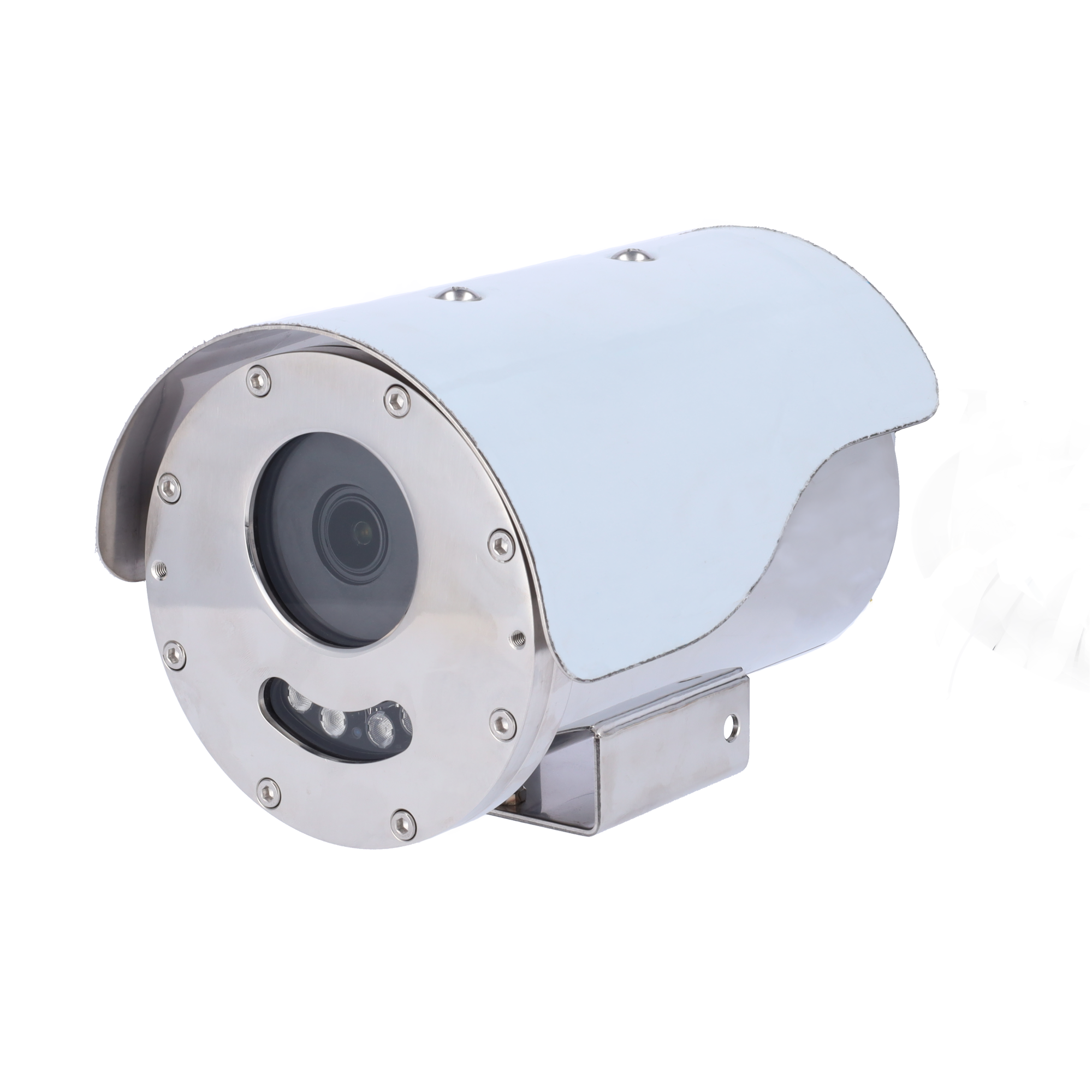

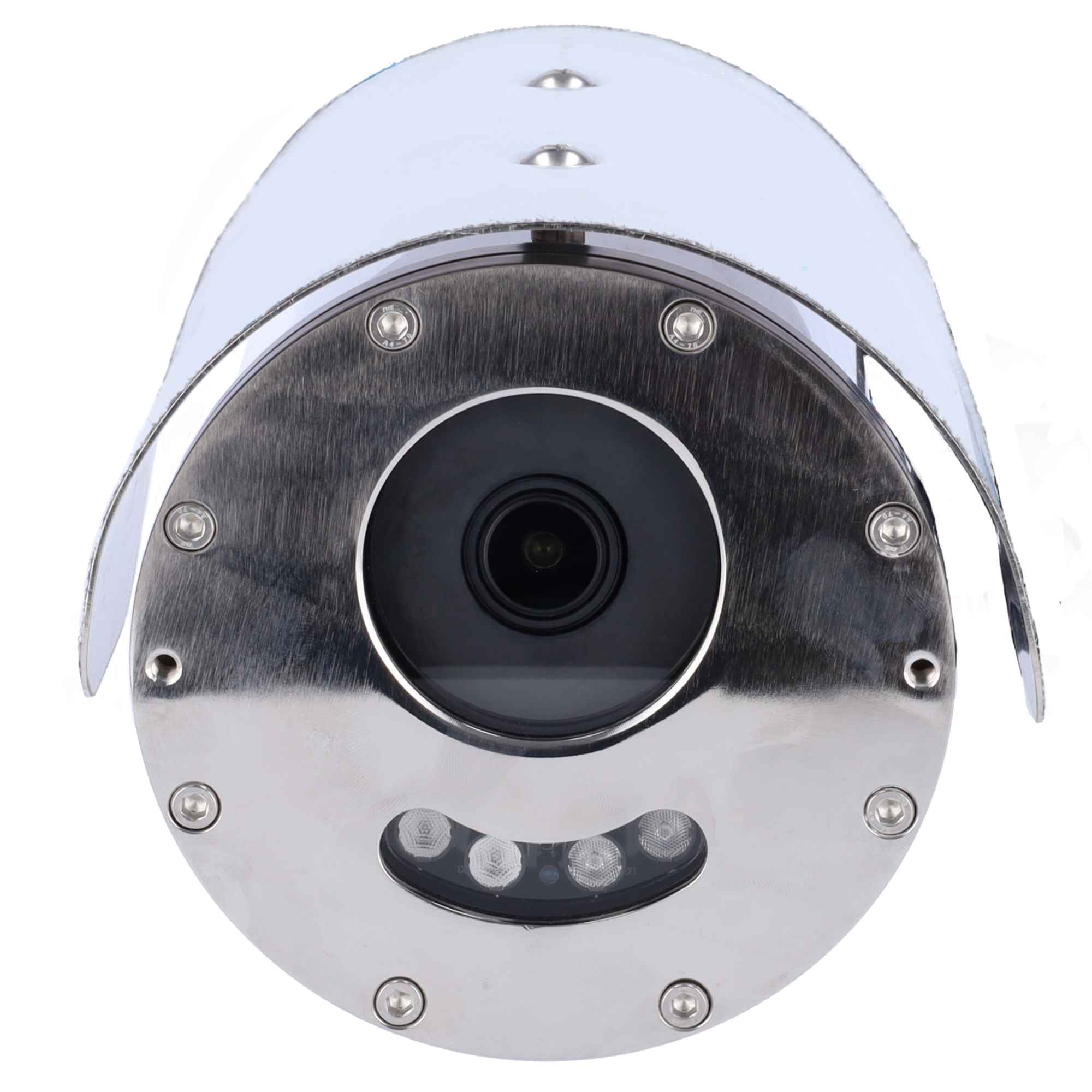

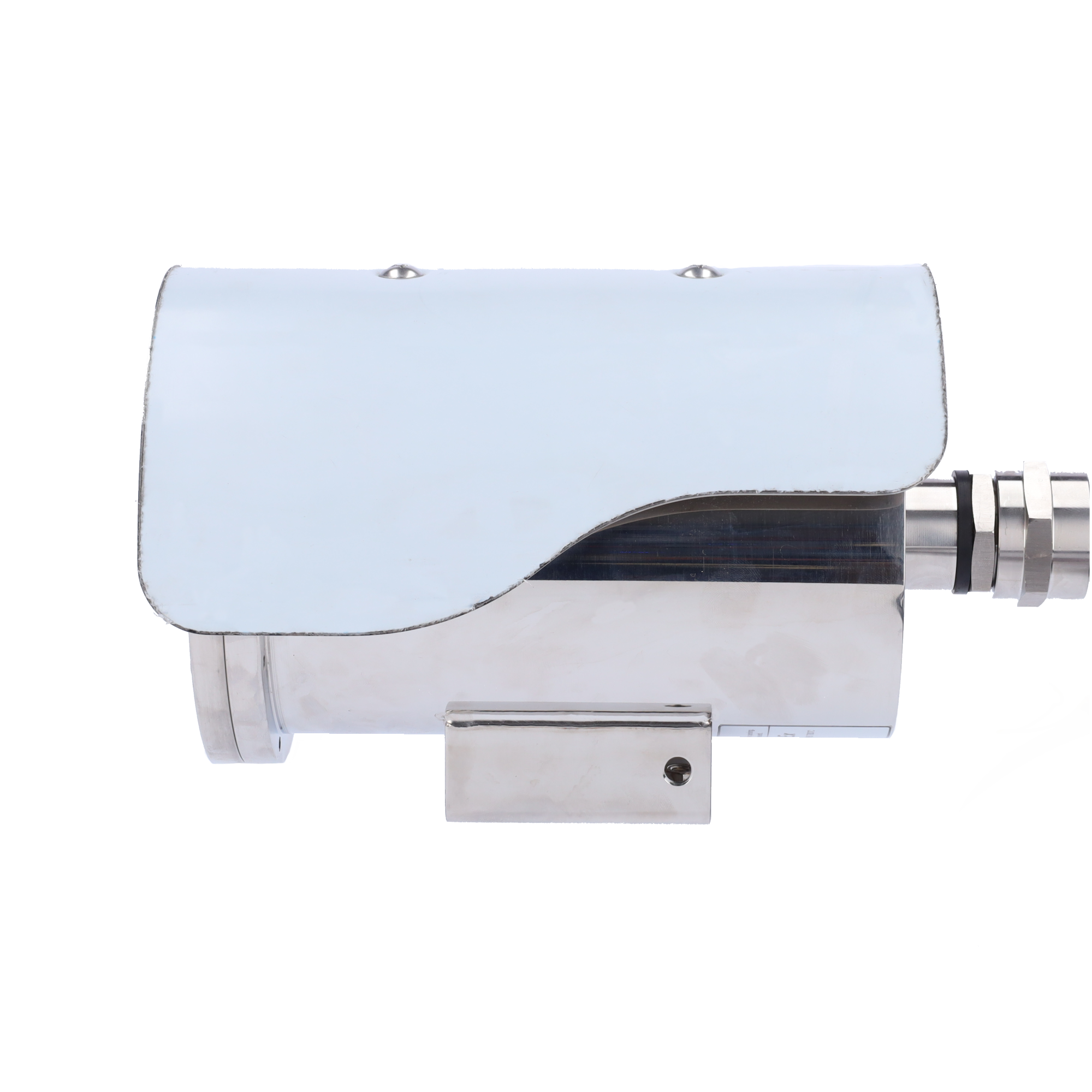

Caméra IP anti-explosion 8 Mpx - 1/2.7" Progressive Scan CMOS - Objectif motorisé 2.8 -12 mm AF - IR LEDs Portée 50 m - Boitier en acier inoxydable 304 résistant à la corrosion - Imperméabilité IP68
Référence :
UNV-ZAF1091-IPC2328-CNEX
- Uniview
- Caméra IP bullet anti-explosion
- Gamme Pro
- 1/2.8" Progressive Scan CMOS
- 8 Mégapixel (3840x2160)
- Objectif Motorisé 2.8-12 mm
- 0 Lux
- IR Portée 50 m
- Entrée/Sortie de audio
- Entrée/Sortie d'alarme
- Compression Ultra265/H.265/H.264
- PoE IEEE 802.3af
- IR CUT
- WDR 120dB
- Fonctions intelligentes
- Interface WEB, CMS, Smartphone et NVR
- Compatible avec ONVIF
- Imperméabilité IP68
- Acier inoxydable
- Anti-explosion CNEX
| Marque | UNIVIEW |
| Capteur d'image | 1/2.8" Progressive Scan CMOS |
| Résolution maximale | 8 Megapixel (3840x2160) |
| Taux Main Stream | 8MP (3840*2160)@20fps; 5MP (3072*1728)@30fps; 4MP (2560*1440)@30fps; 1080P (1920*1080)@30fps; |
| Taux Extra Stream | 1080P (1920*1080)@30fps; 720P (1280*720)30fps; D1 (720*576)@30fps; 2CIF(704*288)@30fps; CIF(352*288)@30fps; |
| Compression | H.265+ / H265 /H.264+ / H264 / MJPEG |
| Objectif | Motorisé 2.8 - 12 mm AF |
| Illumination minimale | 0.005 Lux / IR 50 m |
| Améliorations d'image | WDR (120 dB), BLC, 3D-NR, AWB, Privacy Masking, ROI |
| Jour / Nuit | Filtre ICR mécanique amovible |
| Audio | 1/1 |
| Alarmes | 2/1 |
| Interface de communication | Ethernet 10/100M BaseT | 1 RS485 |
| Accès distant | Navigateur Web, App Smartphone et Software PC Safire Control Center |
| Interopérabilité | ONVIF (Profil S, Profil G, Profil T), API |
| Alimentation | DC 12 V / 5W, Poe IEEE 802.3af |
| Degré de protection | IP68 |
| Caisson | Boîtier en acier inoxydable 304 résistant à la corrosion |
| Certificat | CNEX |
| Temp. fonctionnement | -20º C ~ +60º C |
| Dimensions | 319*144*168mm |
| Poids | 6.5 kg |
